DAKO TachoStation

DAKO-TachoStation: Read out tachographs and driver cards in just one place

DAKO TachoStation 1

With DAKO’s TachoStation you can quickly and flexibly readout driver card and tachograph data at a central point in your company. Additionally, you can easily document the regular check of the driver’s license via RFID technology.

By inserting the driver card into the TachoStation, driver data is transmitted to the audit-proof, in-house DAKO data centre and archived there. Data of the tachograph can be transferred securely via DAKO-Key. Immediately after this process, you can view all data in the TachoWeb.

Thanks to our network of over 560 publicly accessible TachoStations, drivers can also read out data at public stations throughout Germany. You can find the nearest available public readout station here.

Order now

The DAKO-TachoStation at a glance

(function(){ document.addEventListener('DOMContentLoaded', function(){ setTimeout(function(){ var tab1 = document.querySelector('.elementor-tab-title.elementor-tab-desktop-title[data-tab="1"]'); if(tab1){ tab1.click(); } var input = document.querySelector('.wpcf7-form-control-wrap input[name="product"]'); if(input) { input.value = document.title.replace(' - DAKO Telematics',''); } }, 100); }); })();
Advantages

Electronic driving licence control

With an RFID tag attached to all the driving licences of your drivers, the TachoStation can save you valuable time. To do this, your drivers briefly place their driving license with the RFID tag on the TachoStation at regular intervals. This routine task is then completed and documented in compliance with the law.

The appointment management in TachoWeb reminds you and, if you wish, your drivers of their regular appointments, so that you have one less worry.

Flexibility

The TachoStation 2.0 offers your drivers a central base that is available to them for readout driving times around the clock. You never have to interrupt your work on the PC to read out driver card data or tachograph data. This not only saves working time but also gives you the freedom to have all data available without being distracted.

Simple handling without many explanations

Insert your card, wait for the signal for a short time, remove your card again. This is how simple the readout process of the driver cards or the DAKO-Key at the TachoStation 2.0 is. A complicated operation before, during or after the readout process is not necessary. Thus, faulty readout processes or time-consuming operating instructions are a thing of the past. The one-time registration of all your drivers in TachoWeb is sufficient to start.

Maintenance and Cleansing

Maintenance

TachoStation as a software-supported product is an e almost maintenance-free device. To ensure error-free functionality, it only requires maintenance employing an update that is required from time to time. You will receive this automatically with the Generation 2.0 of the TachoStation.

If you still have a concern about the functionality of the TachoStation, please contact our customer support staff via mail or phone. You will receive competent and solution-oriented advice and immediate support in solving the problem.

Cleansing

The TachoStation is extremely easy to maintain. Use the DAKO cleaning cloth to remove light soiling. In case of heavy soiling, wipe the station with a slightly moistened cloth only.

Do not use chemical cleaning products!

Technical details

Dimensions in mm:

  • 288 | 137 | 168 (B | H | D)

Power supply:

  • 12 V | 4 A mains power unit with coaxial power connector

Connection:

  • LAN connection

Network:

  • RJ45 10Mbit
  • Half Duplex

Operator guidance:

  • User-friendly, 7 inch touchscreen



Operation

Readout and transfer driver card and tachograph data easily

Quickly and easily readout and transmit data and carry out regular driver's license checks. The DAKO-TachoStation does all three tasks, so you have to do almost nothing. Simply insert the card or DAKO-Key or hold your driver's license to the device.

You can download a short description of how to operate the device here:

Quick Guide for DAKO-TachoStation

Readout your driver card

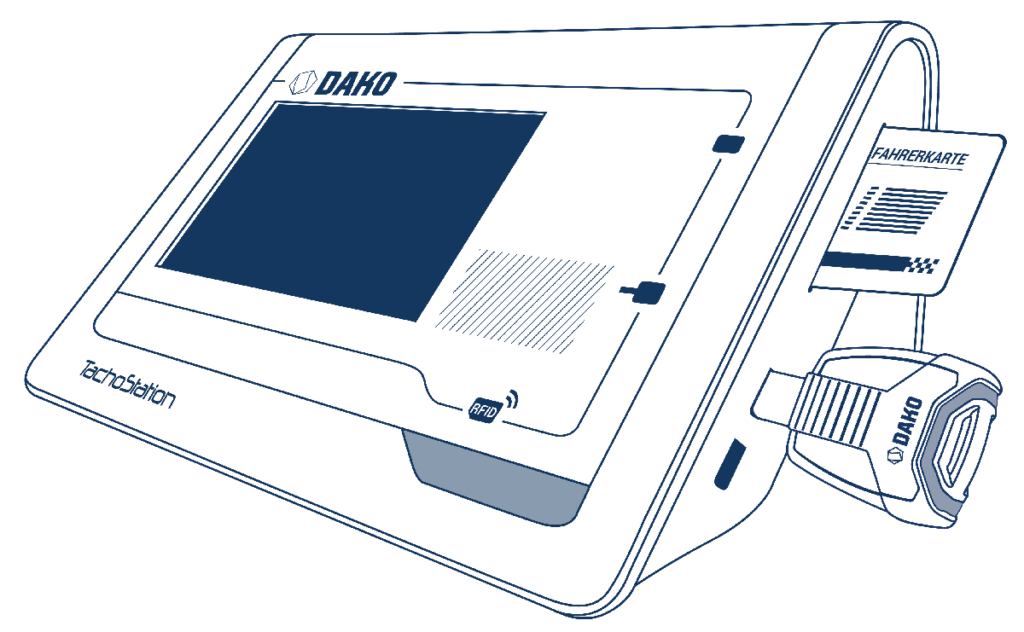

  1. To read out your driver card, insert it into the opening provided for this purpose on the upper right-hand side of the TachoStation.
  2. Follow the interactive instructions on the touch display.
  3. The status light stops flashing and lights up permanently green when you can remove your driver card.

Reading out the DAKO-Key

  1. To read your vehicle data on the DAKO-Key, insert it into the opening provided for this purpose on the lower right side of the speedometer station. Caution: The rounding of the plug must match the rounding of the opening. Please also make sure that the DAKO-Key is inserted firmly enough.
  2. Follow the interactive instructions on the touch display.
  3. The status light stops flashing and lights up permanently green when you can remove your DAKO-Key.

Driving licence check

  1. To check your driving licence regularly, please hold your driving licence with the RFID label against the designated symbol on the front of the TachoStation.
  2. Follow the interactive instructions on the touch display.
  3. The status light stops flashing and lights up permanently green when you can remove your driving licence.

You can download a short description of how to attach the RFID tag to your driving licence here:

Anleitung zum Aufkleben des RFID-Tags

Software

DAKO-TachoWebScreenshot Auswertungen im TachoWeb Basic

To use the TachoStation for reading out tachographs and driver cards you need a user account in DAKO-TachoWeb. If you do not have an account in TachoWeb, you can register directly here.

TachoWeb is available in various packages, which allow you to manage your fleet in accordance with the law, to organize it more efficiently with telematics functions and to make it more sustainable through savings.

For further information, please visit our store at https://shop.dako.de/.
